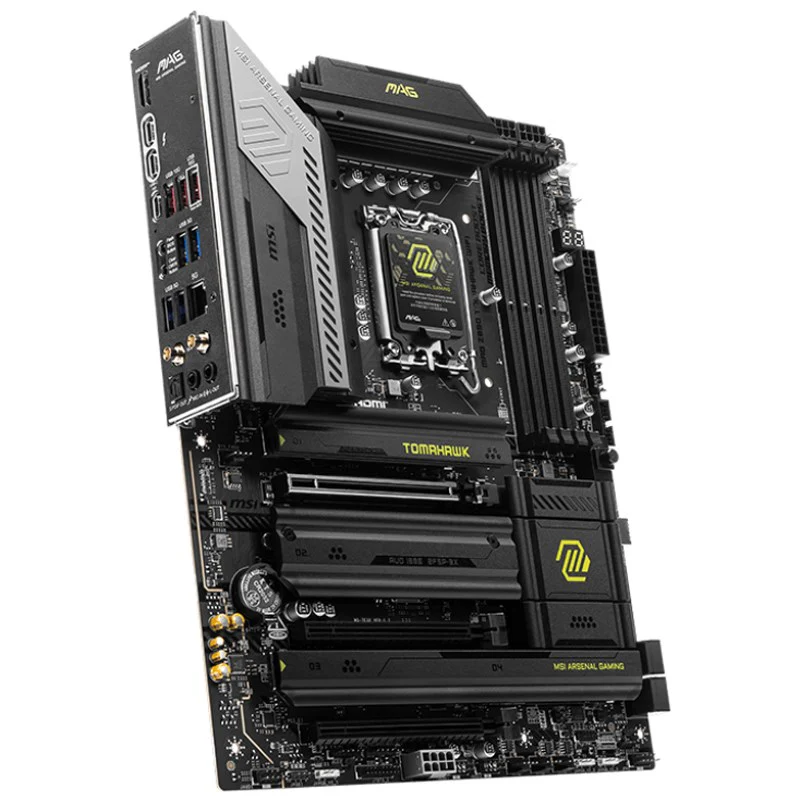

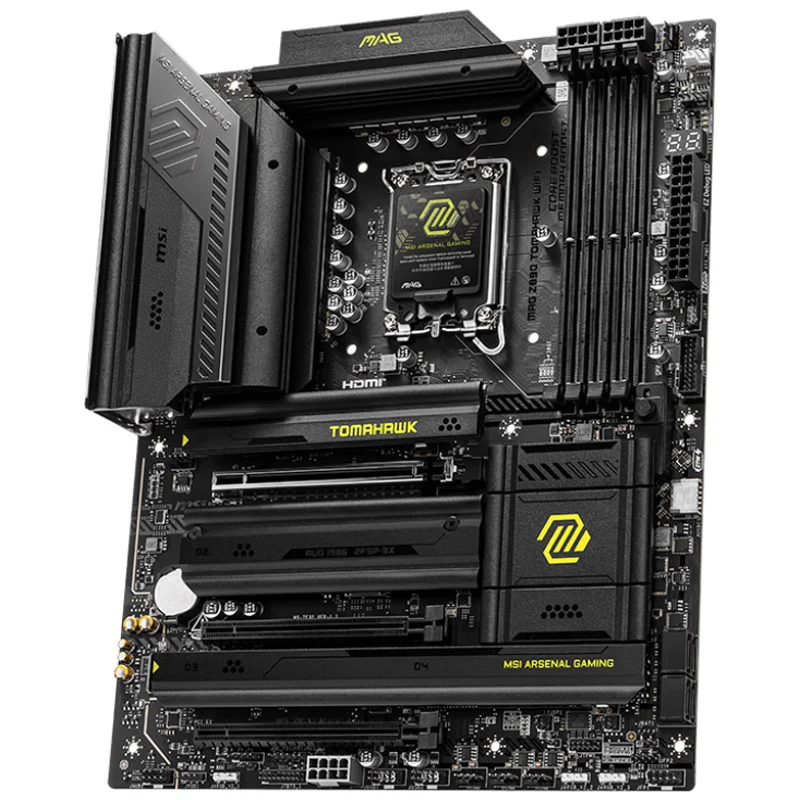

Chipset
|
INTEL Z890
|
CPU
|
Supports Intel® Core™ Ultra Processors (Series 2)
|
|
LGA 1851
|
Memory
|
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
|
|
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
|
|
Max. overclocking frequency:
|
|
• 1DPC 1R Max speed up to 9200+ MT/s
|
|
• 1DPC 2R Max speed up to 7200+ MT/s
|
|
• 2DPC 1R Max speed up to 6400+ MT/s
|
|
• 2DPC 2R Max speed up to 5600+ MT/s
|
|
Supports Intel® POR Speed and JEDEC Speed
|
|
Supports Memory Overclocking and Intel® XMP 3.0
|
|
Supports Dual-Controller Dual-Channel mode
|
|
Supports Non-ECC, Un-buffered memory
|
|
Supports CUDIMM
|
|
• The DIMM slots on this motherboard only have single-sided latches.
|
|
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
|
Onboard Graphics
|
1x HDMI™
|
|
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
|
|
2x Type-C DisplayPort
|
|
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
Slot
|
3x PCI-E x16 slot
|
|
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
|
|
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
|
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
Audio
|
Realtek® ALC1220P Codec
|
|
7.1-Channel High Definition Audio
|
|
Supports S/PDIF output
|
Storage
|
4x M.2
|
|
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
|
|
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
|
|
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
|
|
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
|
|
4x SATA 6G
|
|
*Please refer to the manual for M.2 SSD heatsink restrictions.
|
RAID
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|
Onboard Thunderbolt
|
2x Thunderbolt4 ports (Rear)
|
|
Supports up to 40Gbps transfer rate with Thunderbolt devices
|
|
Supports up to 20Gbps transfer rate with USB4 devices
|
|
Supports up to 10Gbps transfer rate with USB 3.2 devices
|
|
Supports up to 5V/3A,15W power charging
|
|
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
|
|
Supports up to 8K display
|
USB
|
4x USB 2.0 (Front)
|
|
4x USB 5Gbps Type A (Rear)
|
|
2x USB 5Gbps Type A (Front)
|
|
3x USB 10Gbps Type A (Rear)
|
|
1x USB 10Gbps Type C (Rear)
|
|
1x USB 20Gbps Type C (Front)
|
|
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
|
LAN
|
Intel® Killer™ E5000 5Gbps LAN
|
Internal IO
|
1x Thunderbolt5 card connector(JTBT5, support RTD3)
|
|
1x Power Connector(ATX_PWR)
|
|
2x Power Connector(CPU_PWR)
|
|
1x Power Connector(PCIE_PWR 8pin)
|
|
1x CPU Fan
|
|
1x Combo Fan (Pump_Sys Fan)
|
|
6x System Fan
|
|
1x EZ Conn-header (JAF_2)
|
|
2x Front Panel (JFP)
|
|
1x Chassis Intrusion (JCI)
|
|
1x Front Audio (JAUD)
|
|
3x Addressable V2 RGB LED connector (JARGB_V2)
|
|
1x RGB LED connector(JRGB)
|
|
1x TPM pin header(Support TPM 2.0)
|
|
4x USB 2.0 ports
|
|
2x USB 5Gbps Type A ports
|
|
1x USB 20Gbps Type C ports
|
Wireless Lan & Bluetooth
|
Intel® Killer™ BE1750x Wi-Fi 7
|
|
The Wireless module is pre-installed in the M.2 (Key-E) slot
|
|
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
|
|
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
|
|
Supports Bluetooth® 5.4**, MLO, 4KQAM
|
|
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
|
|
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
|
LED Feature
|
4x EZ Debug LED
|
|
1x EZ Digit Debug LED
|

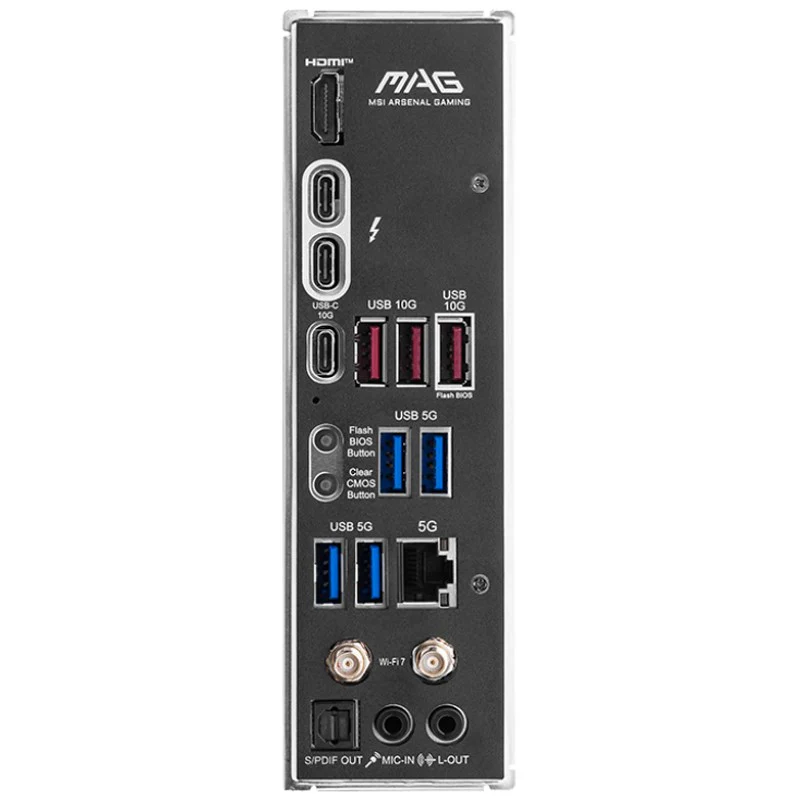

Back Panel Ports
|
USB 10Gbps Type-A
|
|
USB 5Gbps Type-A
|
|
5G LAN
|
|
Wi-Fi / Bluetooth
|
|
Audio Connectors
|
|
HDMI™
|
|
Thunderbolt™ 4 40Gbps (Type-C)
|
|
USB 10Gbps Type-C
|
|
Flash BIOS Button
|
|
Clear CMOS Button
|
|
USB 5Gbps Type-A
|
|
S/PDIF-OUT
|
Operating System
|
Support for Windows® 11 64-bit
|
PCB Info
|
ATX
|
|
243.84mmx304.8mm
|
